Feature
(1) All SS 316 mooring cleats/bollards are cast from SS 316 stainless steel, which is a high-grade product with strict polishing, and the surface of the finished products can achieve 8K mirror effect.
(2) All SS 316 mooring cleats/bollards are with good performance of anti-corrosion and rust resistance, and all fittings are made of stainless steel, which has long service life and can adapt to harsh marine environment.
Specification Information
Item No | Specification Size (MM) | Applicable Yahct/Boat（Feet) | Moorning Load (KN) | Single Weight (KG) |
| SSCL-5T01 | 300*229*90.5 | ＜50 | 50 | 2.11 |
| SSCL-10T Standard | 352*289.5*130 | ＜80 | 100 | 4.64 |
| SSCL-10T Super1 | 240*209*130 | ＜80-120 | 150 | 12 |
SSCL-10T Super2 | 520*450*200 | ＜120-180 | 150 | 30 |
SSCL-10T Super3 | 520*450*220 | ＜180-250 | 200 | 32 |

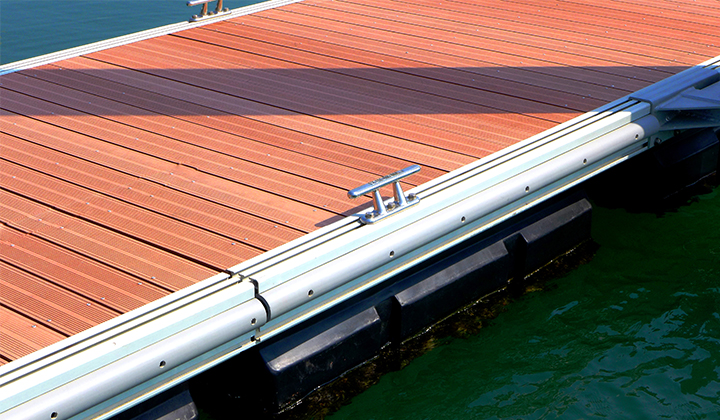

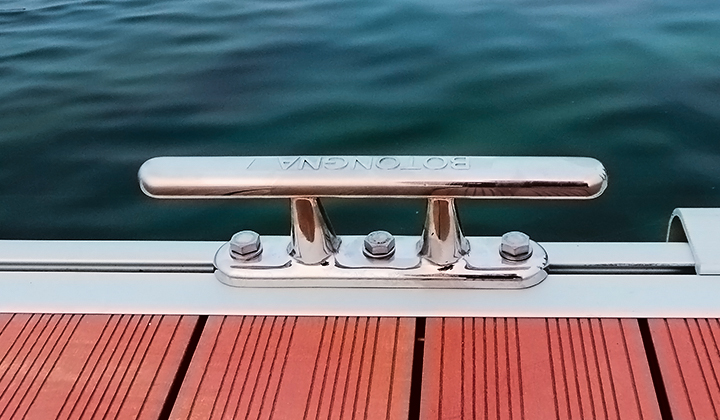

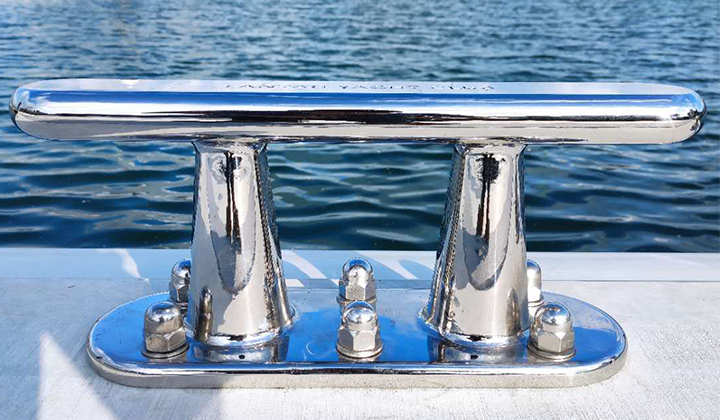

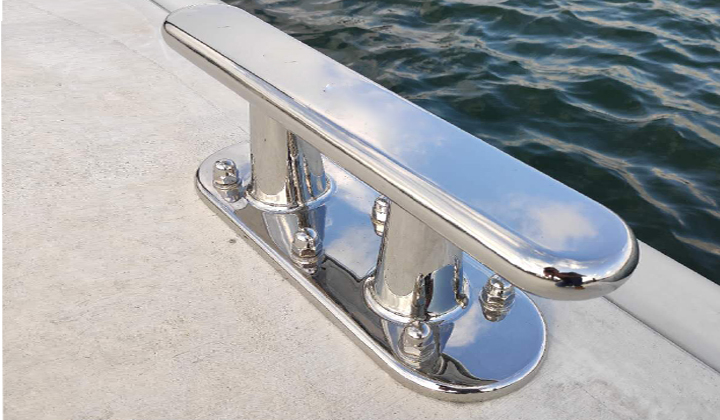

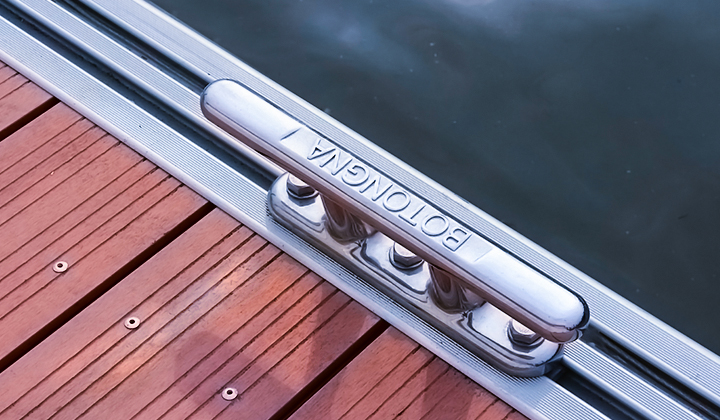

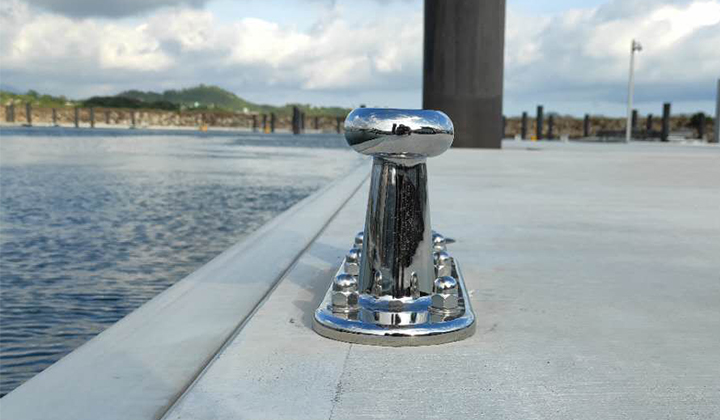

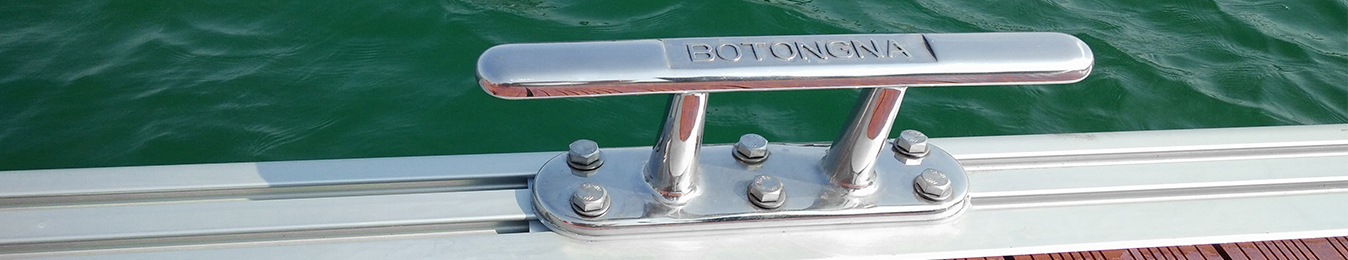

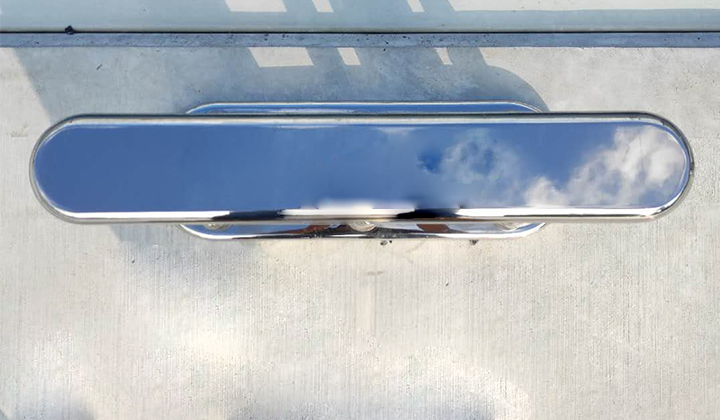

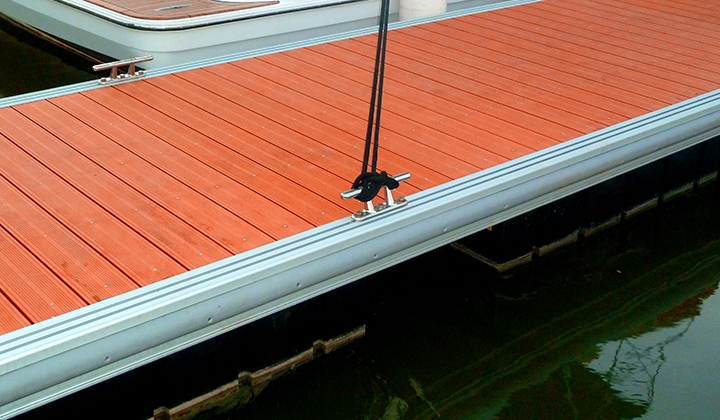

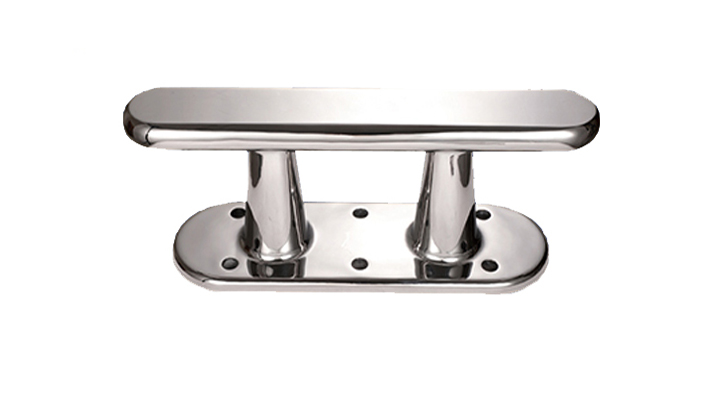

Pictures Show Installation Diagrams
SSCL-5T01 |
|
SSCL-10T Standard |
|
SSCL-10T Super1 |
|
SSCL-10T Super2 |
|
SSCL-10T Super3 |
|
Application Scope
SS 316 mooring cleat/bollard can be used for mooring yachts/ships with various specifications ranging from 10 meters to 100 meters, and can meet the mooring requirements of yachts/ships with a displacement of less than 2,000 tons.
. The specifications and patterns of the cleat/bollard can be customized in accordance with drawings and samples.
. Surface logo on the cleat/bollard can be customized under requirements.
