Technical Data
Strength of Concrete: 40 N/mm2 reinforced plastic fiber concrete, with exposure grade conforming to European EN 206-1 standard.

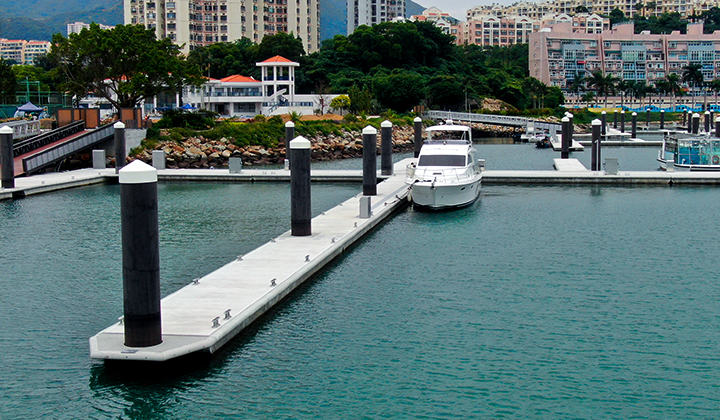

Anchoring System: pile guide anchoring system (steel pile guide), elastic mooring system, shore slide rail anchoring system.

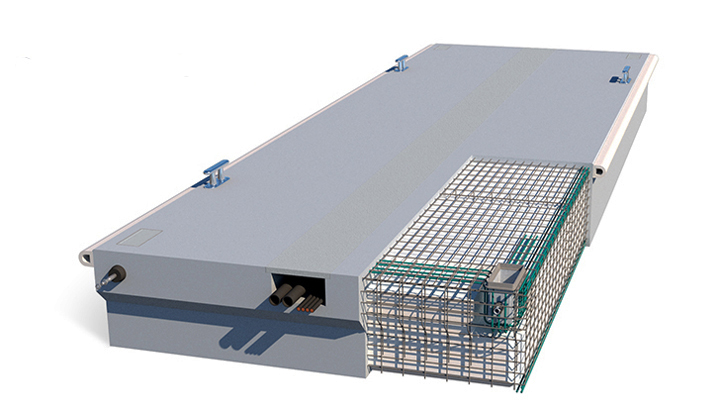

Polystyrene Foam Core

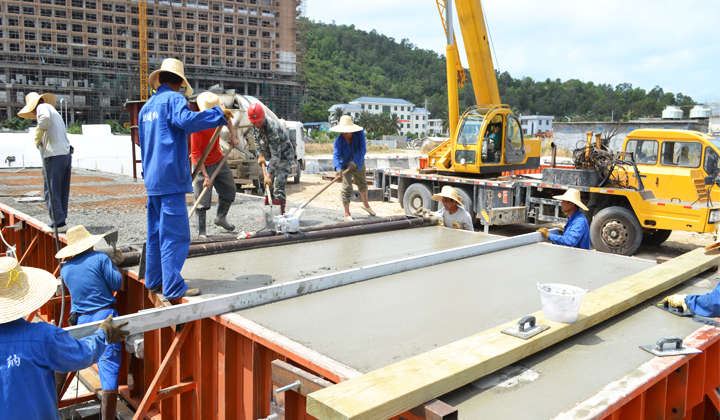

The polystyrene foam is cut into the shape of a pontoon by numerical control processing and installed in the pontoon mold. Concrete casting makes polystyrene foam perfectly stick together with concrete to form a seamless floating structure. The foam density is 15kg/m3 with high compressive strength and low water absorption, which can make the concrete pontoon never sink.
Product Introduction

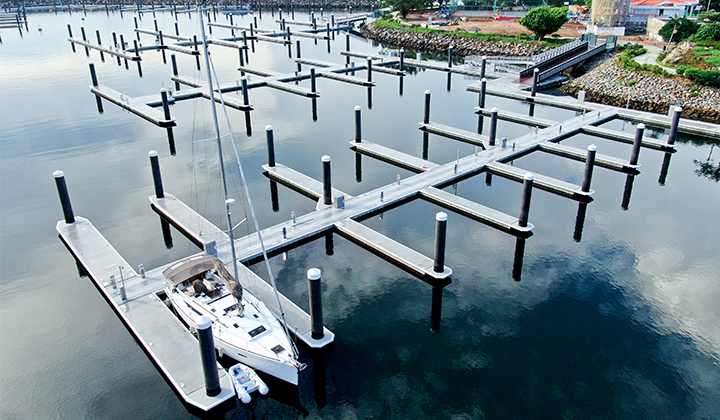

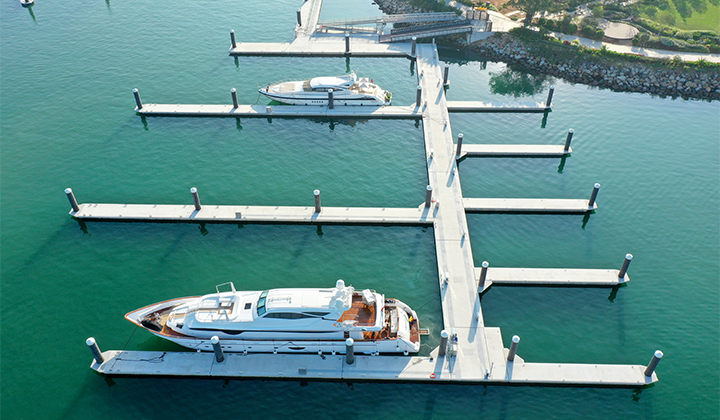

Goodock’s concrete pontoon system is so attractive to the private customers and large yacht club investors. GOODOCKS is committed to providing customers with excellent concrete pontoon system, professional design combined with high-quality and sufficient materials, so that the products can be with high stability, safety and durability.
Specification Table
| Standard Concrete Pontoon | Heavy-Duty Concrete Pontoon | |||||||||||
| Item | Unit | CM2400 | CM3000 | CM4000 | CM5000 | Item | Unit | CM2400 | CM3000 | CM4000 | CM5000 | |
| Pontoon Length | * The standard pontoon is 15m in length. * 6-20m long pontoon can be customized. | * The standard pontoon is 15m in length. * 6-20m long pontoon can be customized. | ||||||||||
| Width with Fender | m | 2.7 | 3.3 | 4.3 | 5.3 | Width with Fender | m | 2.7 | 3.3 | 4.3 | 5.3 | |
| Pontoon Width | m | 2.4 | 3.0 | 4.0 | 5.0 | Pontoon Width | m | 2.4 | 3.0 | 4.0 | 5.0 | |
| Height | m | 1.1 | 1.1 | 0.9 | 09 | Height | m | 1.1 | 1.1 | 0.9 | 0.9 | |
| Average Weight | kg/m | 1.38 | 1.65 | 1.9 | 2.38 | Height（m） | kg/m | 1.8 | 2.03 | 2.41 | 2.87 | |
| Live Load | kpa | 5 | 5 | 5 | 5 | Live Load | kpa | 5 | 5 | 5 | 5 | |
| Freeboard | mm | 500 | 500 | 500 | 500 | Freeboard | mm | 500 | 500 | 500 | 500 | |
| Connection Joints | pcs | 2 | 2 | 2 | 2 | Connection Joints | pcs | 2 | 2 | 2 | 2 | |
| Gap of Joints | mm | 30 | 30 | 30 | 30 | Gap of Joints | mm | 30 | 30 | 30 | 30 | |
Optional Accessories
Mooring Cleat: aluminium alloy or 316 stainless steel
Fender: softwood, rubber
Decking: there are two types for concrete pontoon decking, fair-faced concrete surface and deck paving

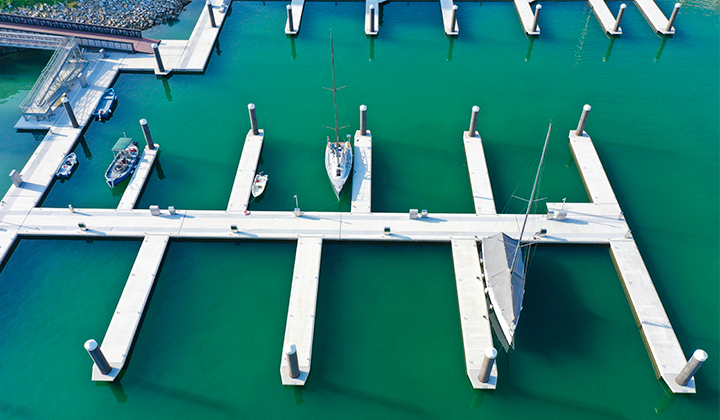

Fair-faced Concrete Deck: the deck and the main structure of pontoon are integrated modules, and the surface of the deck is treated with wire-drawn workmanship by professional tools, which can play an anti-skid role, be beautiful and easy to clean.

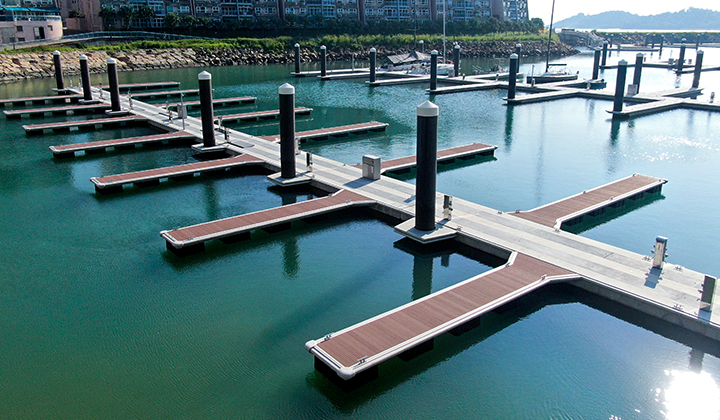

Deck Paving: WPC(Wood-Plastic Composites) decking or PE(polyethylene) and FRP decking can be used for paving, and the periphery of the pontoon is covered with aluminum alloy frame structure, which is known for its beautiful appearance, high-end visual sense and environmental protection, and is suitable for luxury and top-class super yacht clubs.
Other Equipment: water and electricity pedestal with aluminium alloy case, hose reel equipment and sewage disposal facilities.
